Fog Lamps (pair) - Diode Dynamics Elite Series Type A

Fog Lamps (pair) - Diode Dynamics Elite Series Type A

$220.00 USD
$220.00 USD
Sale Sold out
Color: White
  • BACKORDERED SEVERAL WEEKS!!  Diodes lead time shown on their website listing is the same as it is through my dealer portal, make sure to check first before ordering
  • Order these along with applicable NB (99-05) Miata fog light adapter kit for $20 off automatically applied at checkout
  • The brightest, cleanest, most crisp fog lights you could ever want
  • High-performance OEM-grade replacement
  • Custom-engineered optic provides extremely wide, intense light output
  • Amber backlight
  • Road-legal fog light (SAE F3 compliant)
  • Engineered and assembled in USA

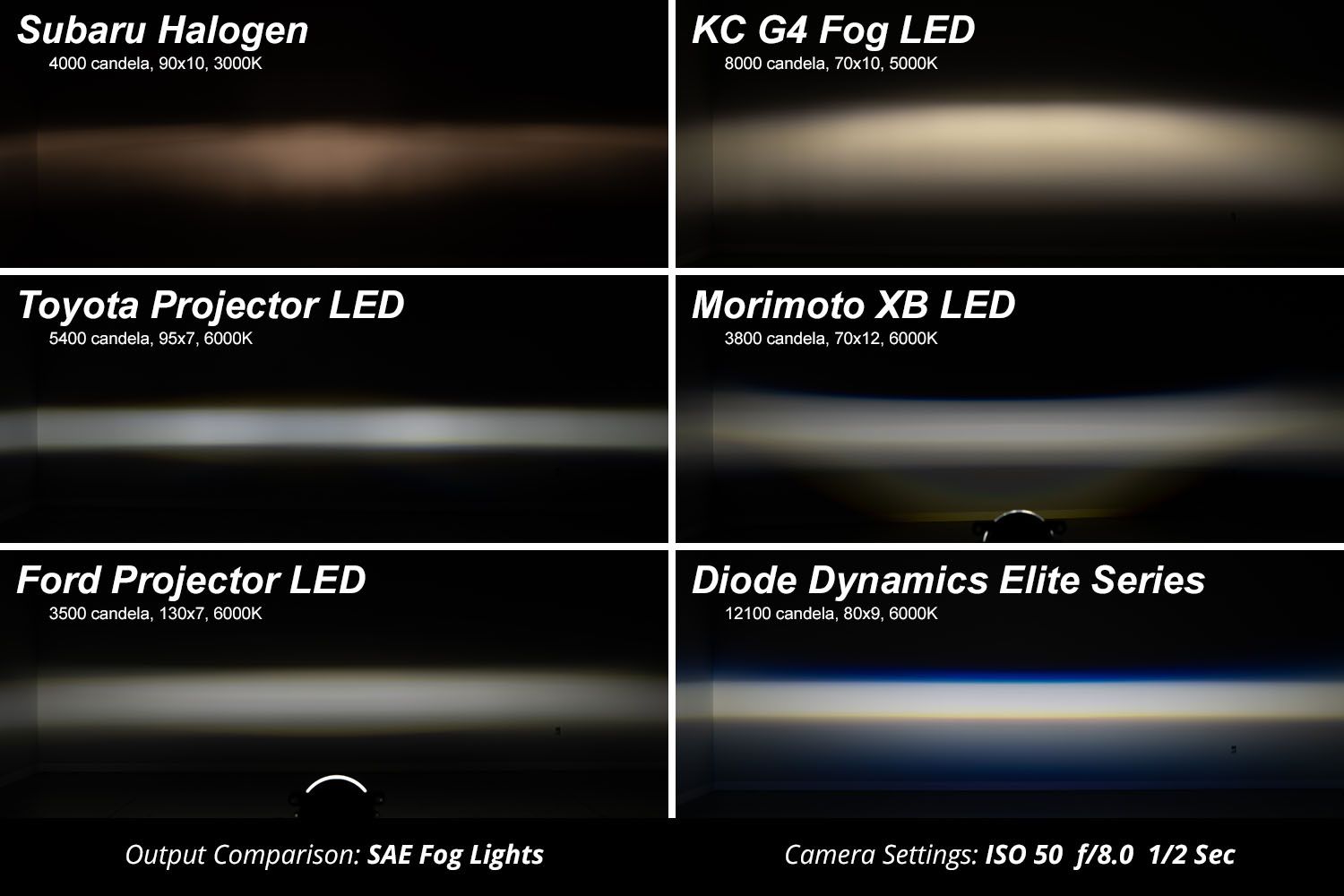

  • Delivers up to 5 times more output than halogen lamps
  • In the Box:
    • Two (2) Elite Series Type A fog lamps
    • Two (2) H11 4-pin DT backlight tap wires (modified with necessary connector if purchased with adapter kit and a harness is specified)
    • Two (2) T-taps
    • Mounting guide
  • 8 year warranty
  • Measured Lumens: White: 680 lm, Yellow: 560 lm, Backlight: 3 lm
  • Intensity (cd): White: 13,000 cd, Yellow: 11,400 cd
  • Color Temp (CCT): 1800K, 3000K, 6000K
  • Beam Angle: Fog, 80°x6°
  • Power (watts): White & Yellow Main Beam: 18, Backlight: 0.3
  • Operating Voltage: 9-16V
  • Current (amps @ 13.2V): White & Yellow Main Beam: 1.4A, Backlight: 25mA
  • Wire Size: 16AWG & 18AWG
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • Connector(s): Deutsch DT Input
  • Intrusion Ratings: IP68 Waterproof
  • Direct replacement fitment
    • Acura ILX 2013-2018
    • Acura RDX 2010-2018
    • Acura TL 2012-2014
    • Acura TSX 2011-2013
    • Ford Bronco (w/ Standard Bumper) 2021-2023
    • Ford C-Max 2013-2016
    • Ford Explorer 2012-2015
    • Ford Fiesta ST 2014-2019
    • Ford Focus 2009-2014
    • Ford Focus ST 2013-2014
    • Ford Freestyle 2005-2007
    • Ford Fusion 2013-2016
    • Ford Mustang 2006-2009
    • Ford Mustang 2015-2017
    • Ford Ranger 2019-2023
    • Ford Ranger STX 2005-2007
    • Ford Taurus X 2008-2009
    • Ford Transit Connect 2010-2018
    • Fiat 500 2012-2016
    • Honda Accord 2013-2015
    • Honda Civic 2016-2021
    • Honda Civic Si Sedan 2013-2015
    • Honda Crosstour 2013-2015
    • Honda CR-V 2012-2014
    • Honda CR-Z 2013-2016
    • Honda Fit 2015-2017
    • Honda Insight 2010-2014
    • Honda Odyssey 2019-2020
    • Honda Pilot 2012-2019
    • Nissan Frontier 2009-2021
    • Nissan Sentra 2007-2012
    • Nissan Titan 2017-2019
    • Nissan Titan XD 2016
    • Nissan Xterra 2005-2015
    • Ram 1500 (non- LED) 2019-2023
    • Scion FR-S 2013-2016
    • Subaru Ascent 2019-2023
    • Subaru BRZ 2013-2017
    • Subaru Crosstrek 2016-2022
    • Subaru XV Crosstrek 2013-2015
    • Subaru Forester 2014-2023
    • Subaru Impreza 2012-2014
    • Subaru Impreza (w/ Eyesight Package) 2015-2023
    • Subaru Legacy 2010-2014
    • Subaru Outback Wilderness 2022-2023
    • Subaru WRX 2015-2021
    • Subaru WRX STi 2015-2017
