Weird Autoworks

Hitch Mount LED Pod Reverse Kit for 2010-2024 Toyota 4Runner

Hitch Mount LED Pod Reverse Kit for 2010-2024 Toyota 4Runner

Regular price $140.00 USD
Regular price Sale price $140.00 USD
Sale Sold out
Light Pod Variant

Features

  • Allows you to mount an SSC1 or C1R LED pod in the Toyota 4Runner trailer hitch receiver.
  • Adds a powerful reverse light, 4th brake light, and additional running light.
  • Simple 5-minute installation, with no need for custom wiring or routing wires.
  • Optional SafetyStrobe brake light strobing.
  • Designed and assembled in USA.

Overview

Add significantly more light output when backing up at night with our Stage Series HitchMount Reverse Light Kit! This kit allows you to mount one SSC1 or C1R LED pod in your 2-inch or 2.5-inch trailer hitch receiver, adding a high-power reverse light, additional running light, and an optional 4th brake light with the C1R option. With the included wiring harness, this kit connects to the Toyota 4Runner's factory trailer hitch wiring for simple, everyday operation.

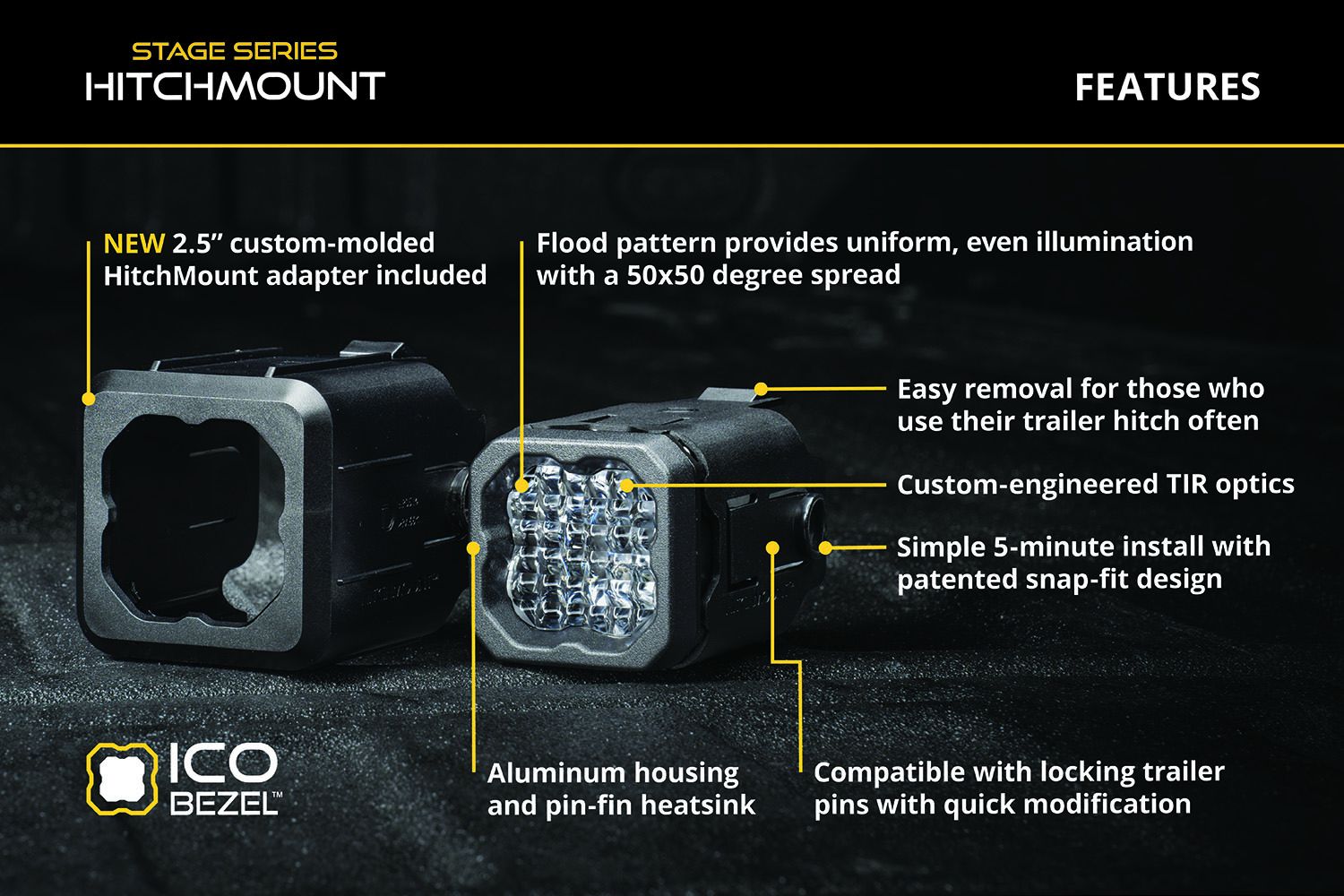

Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light on the SSC1 and C1R LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.

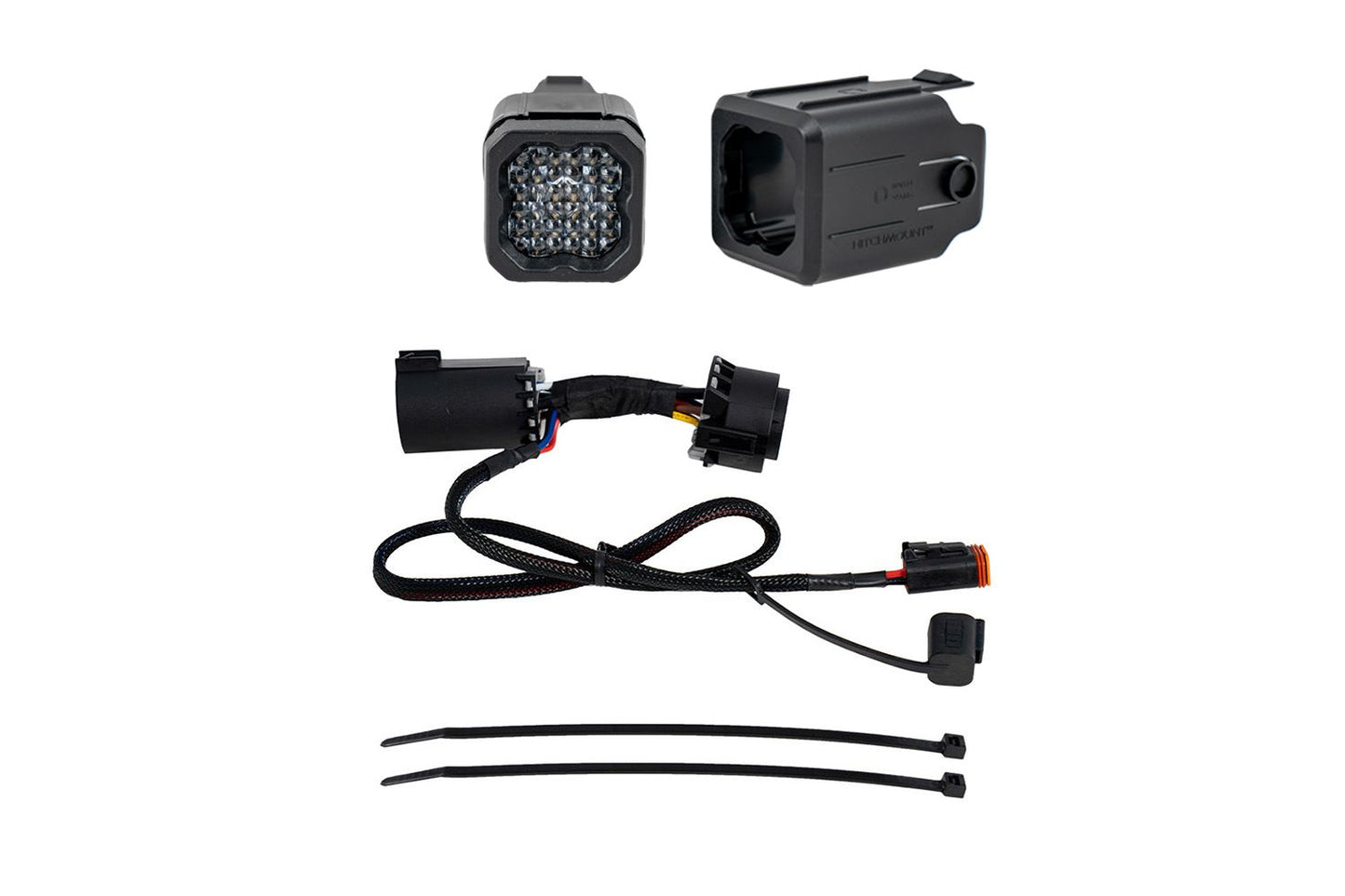

In the Box:
  • One (1) SSC1 Sport or C1R HitchMount LED Pod
  • One (1) Snap-In 2.5in Receiver Adapter*
  • One (1) 7-Pin trailer single output harness
  • Two (2) Zip ties
  • Installation guide
Quantity: One (1)
Warranty: Lifetime warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

Application: Backup/Reverse Light
Make: Toyota
Model: 4Runner
Years: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
Harness Length: DT connector to inline harness: 25.59 inches
Datasheet(s) (click to download): SSC1 Sport White Standard
Measured Lumens: SSC1 Sport: 1,030 lm, C1R: 1,080 lm
Intensity (cd): SSC1 Sport: 400 cd, C1R: 480 cd
Color Temp (CCT): 6000K
Power (watts): SSC1 Sport: 12.8, C1R: 14.1
Operating Voltage: 9-16V
Current (amps @ 12.8V): SSC1 Sport: 1, C1R: 1.1
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Cree XP-L HI, Osram 1414 Pure
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof
